Features:
● Narrow body design saves space
●Multiple can be cascaded side by side
●Standard configuration crash barrier
●Overload protection to prevent sensor damage
●Anti electromagnetic interference
●Adaptive dynamic digital filtering technology
Technical parameters
|
Parameters |
Specification |
|
Weighing range |
300g、500g、600g、1000g、2000g |
|
Accuracy |
0.05、0.01、0.1 |
|
Response time |
0.2 to 0.4s |
|
Adaptive filtering |
0-9 |
|
Sampling rate |
10 to 800 |
|
Repeatability |
≤±0.02g（0.005g） |
|
Linearity |
≤±0.05g(0.01g) |
|
Communction port |
RS232、RS485 |
|
Supply voltage |
12-36VDC |
|
Power |
3W |
|
Mounting type |
Bottom fix |
|
Work temperature |
10℃ to 30℃ |

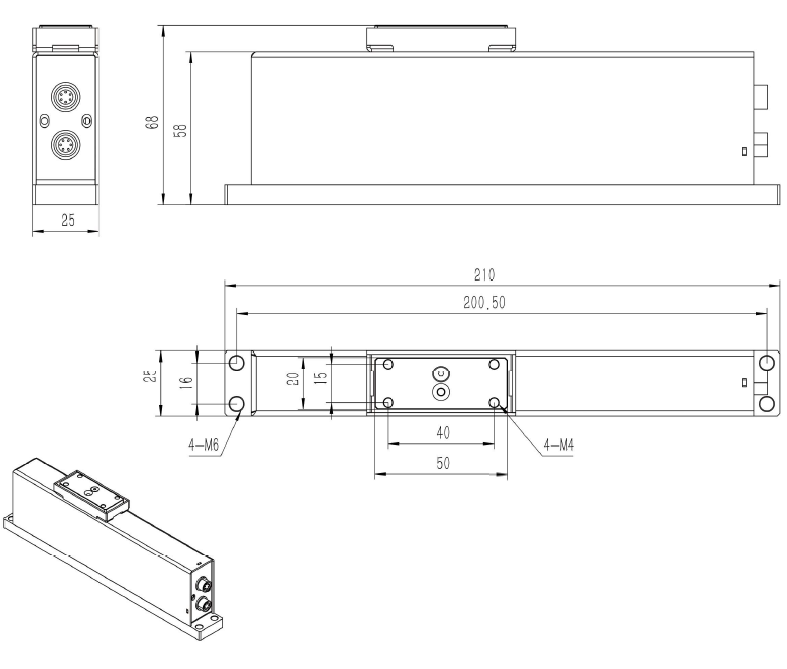

Dimensions:

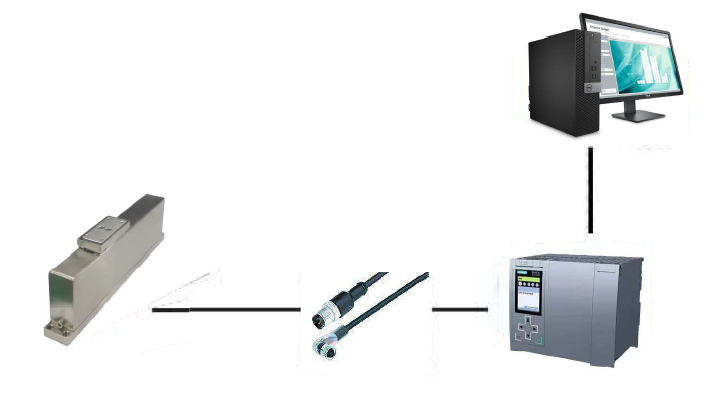

Typical configuration:
