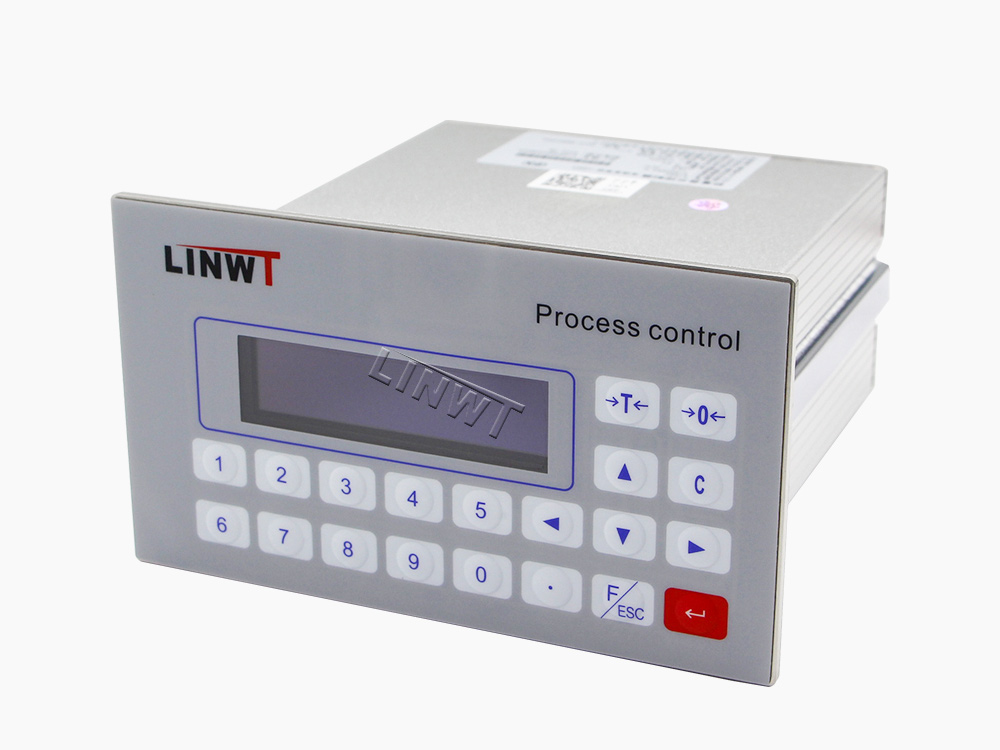

Adopting the Delta-sigma analog-to-digital conversion and digital filter processing technology. It is very easy to build a master/slave controlling system via RS232/485、 serial port with PLC host devices.
Technical parameters
|
Division |
100000 |
|
Display |
OLED display |
|
AD converter |
Σ/Δ24 bit AD converter, analog and digtal fitering AD sampling rate：800HZ |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：6*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232、RS485 |
|
installation |
Panel mount |
|
Operating temperature |
-10℃-40℃, non-condensing Housing material：Aluminum shell power：24VDC |
|
Options |
4IN8OUT、CANBus |
Outline Dimension
Feature
●Support 2 loadcell port, up to 4 x 350 ohm load cells
●Maximum 800HZ AD updating rate
●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●Spport 1 RS232 and 1 RS485 Serial port communication, support Modbus-RTU、1CANBus
●LWT weigh algorithm, resistance to electromagnetic
●Support multiple options
