Features:
● Optional input/output
●Optional crash barrier
●Overload protection to prevent sensor damage
●Anti electromagnetic interference
●Adaptive dynamic digital filtering technology
●Side outgoing line and bottom
Technical parameters
|
Parameters |
Specification |
|
Weighing range |
80g |
|
Accuracy |
0.0001、0.001 |
|
Response time |
0.2 to 0.4s |
|
Adaptive filtering |
0-9 |
|
Sampling rate |
10 to 800 |
|
Repeatability |
≤±0.02g（0.005g） |
|
Linearity |
≤±0.05g(0.01g) |
|
Communction port |
RS232、RS485 |
|
Supply voltage |
12-36VDC |
|
Power |
3W |
|
Mounting type |
Bottom fix |
|
Work temperature |
10℃ to 30℃ |

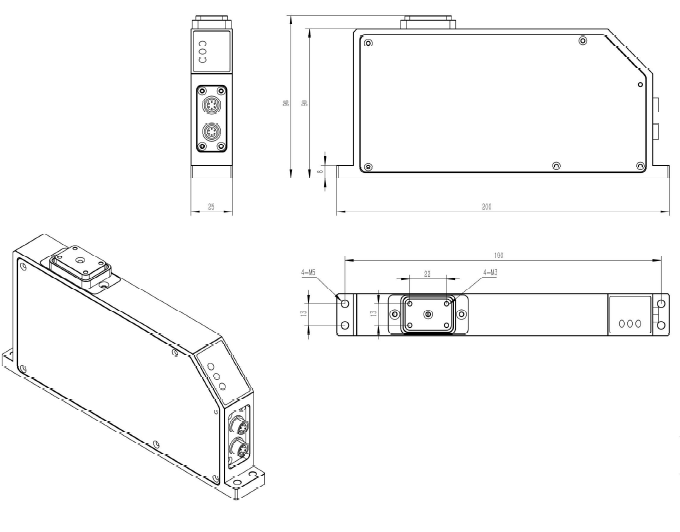

Dimensions:

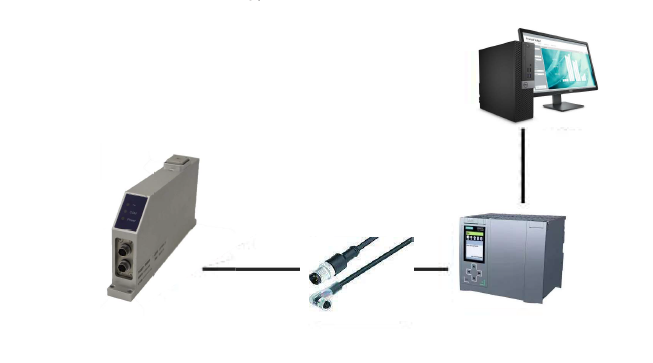

Typical configuration:
