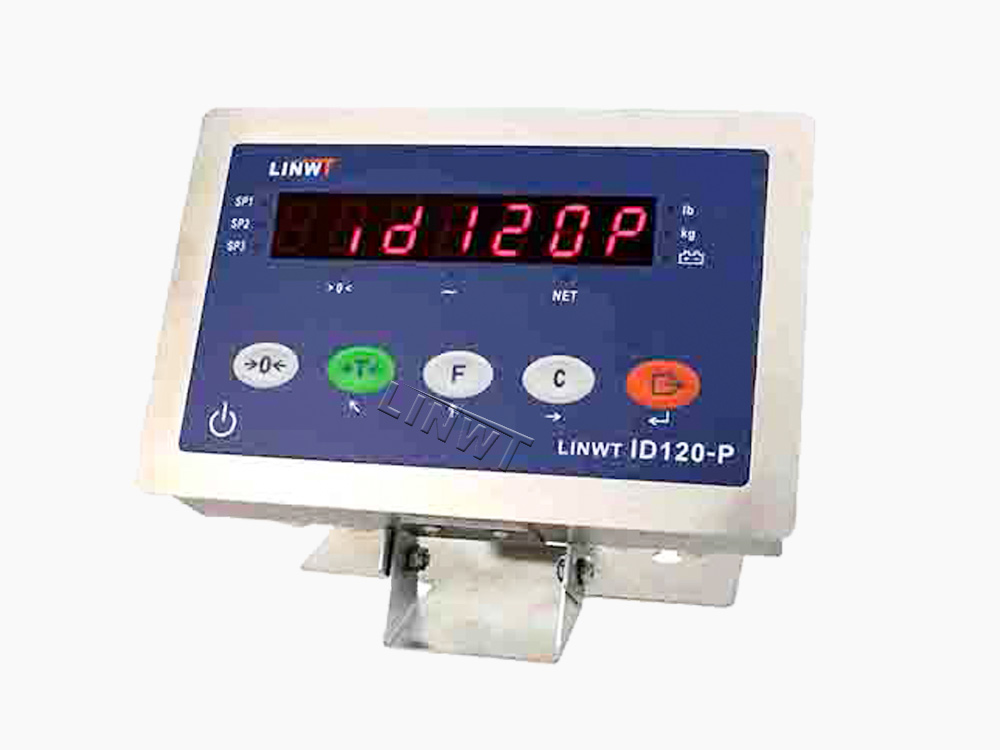

Explosion-proof weighing terminal, applicated in chemical, pharmaceutical, paint and other industrial explosion-proof situation
Technical parameters|
Division |
100,000 |
|
Display |
6 bit red LED display |
|
Calibration And function |
Calibration： weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking |
|
AD converter |
Σ/Δ24 bit AD converter, analog and digtal fitering AD sampling rate： 200HZ |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number： 4*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232, RS485 |
|
installation |
Panel mount |
|
Operating temperature |
-10℃-40℃, non-condensing Housing material：304stainless steel power：AE910AC/DC power, LHBATT-5000 |
|
Mounting type |
Pole mount, Wall mount |
|
Options |
AN, IO |
Outline Dimension
Feature●Support 1 loadcell port, up to 4x350 ohm load cells
●Spport 1RS232,1RS485 Serial communication,support MODBUS-RTU
●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●Resistance to electromagnetic interference, Shock resistant
●Simple comparison set point, Sequence control set point
●weight control set point
●200Hz /100Hz A/D updating rate
●Automatic print, accumulative print
