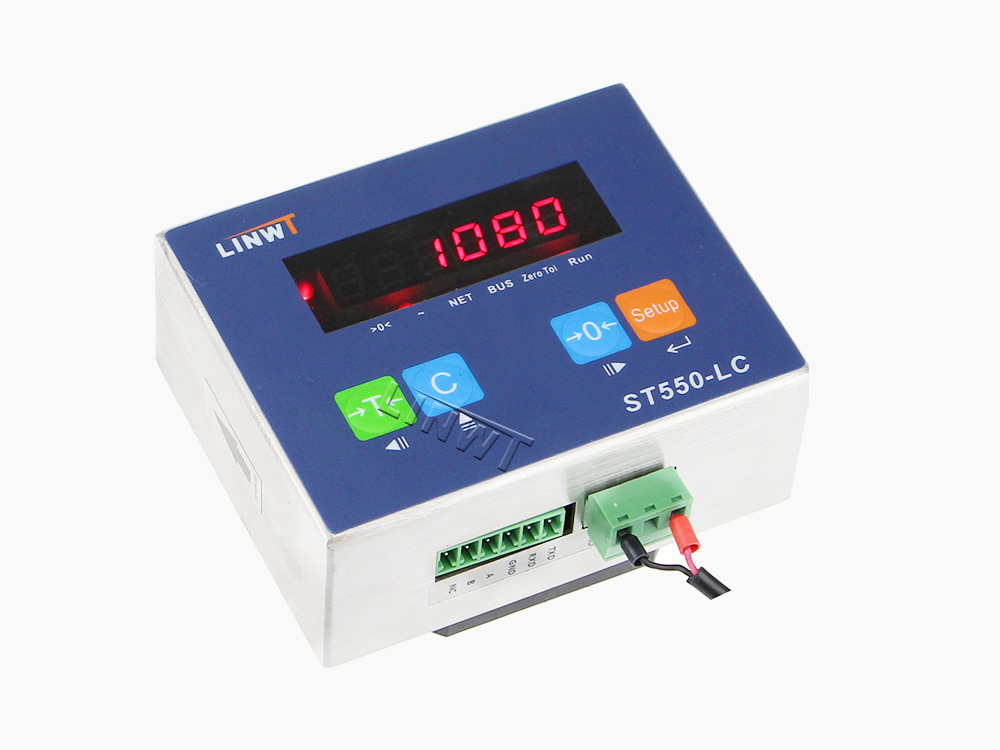

Adopting theDelta-sigma analog-to-digital conversion and digital filter processing technology. It is very easy to build a master/slave controlling system via RS232/485 serial port、4-20mA、0-5V、0-10V with HMI and PLC
Technical parameters
|
Division |
100,000 |
|
Display |
6-bit LED display |
|
Calibration And function |
Calibration ：weight-free&weight calibration Filter：Multistage dynamic digtal filter, zero-tracking |
|
Nonlinearity |
Better than 0.002%FS |
|
Load cell |
Excitation voltage：5VDC Number：4*350Ω Type：Four-wire or six-wire |
|
Communction |
RS232, RS485 |
|
installation |
Din mount |
|
Operating temperature |
-10℃-40℃, non-condensing Housing material：304stainless steel power：24VDC |
Outline Dimension
Feature●Multistage dynamic digital filter, meet the demand of high speed dynamic weighing
●Support weight-free calibration & weight calibration
●Resistance to electromagnetic interference、Shock resistant
●Support 1 load cell port, up to 4 x 350 ohm load cells
●Support 1RS232, 1RS485 Serial communication, support MODBUS-RTU
●Support analog output
●400Hz / 200Hz /100Hz A/D updating rate
